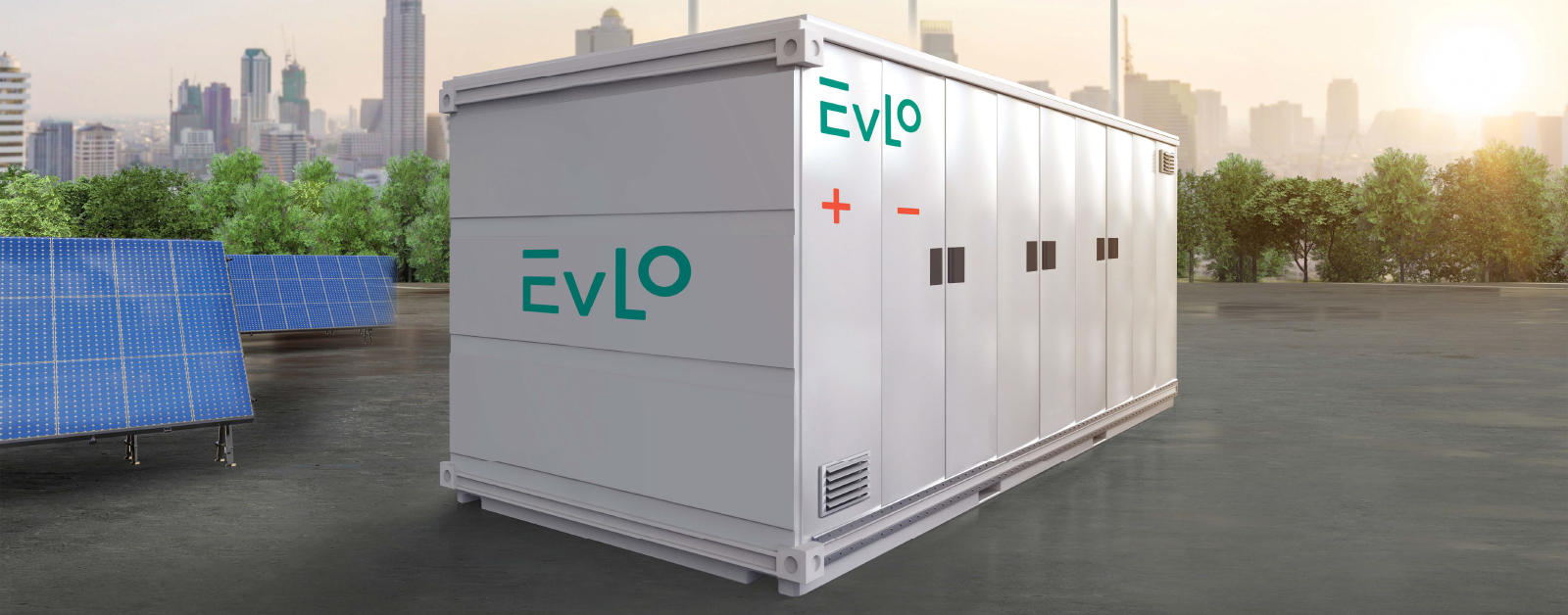

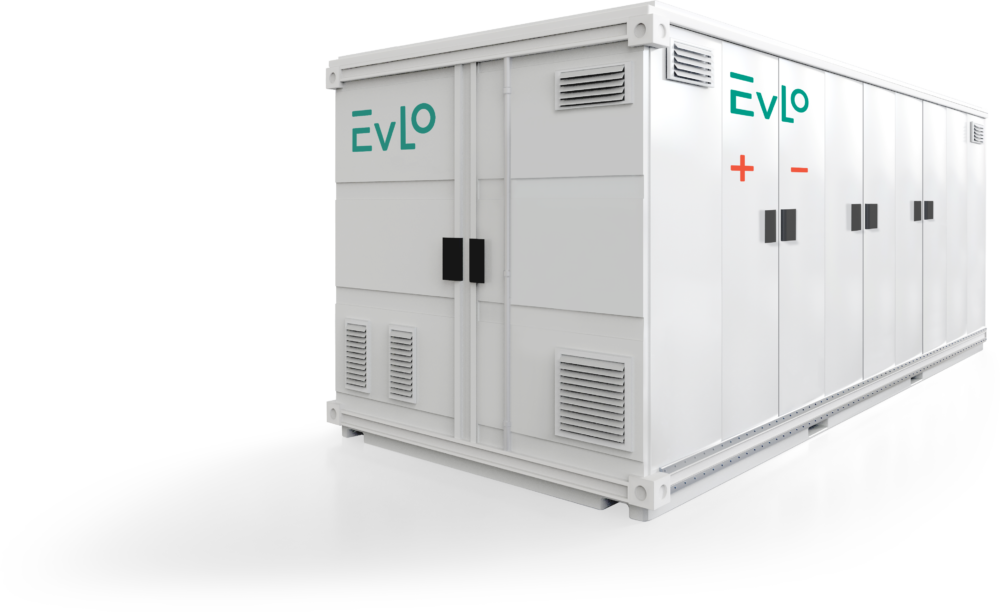

EVLO SYNERGY delivers exceptional value for large-scale projects
Discover how EVLO SYNERGY transforms large-scale energy storage with a high-density design using the latest LFP technology, offering superior value for utilities and IPPs. EVLO SYNERGY can be configured for a wide range of power and energy applications.Supports large-scale energy storage projects for utilities and IPPs
Highly competitive cost of ownership
Meets industry safety and security benchmarks
Fits inside of a 20-foot container
Uses the latest lithium-iron-phosphate (LFP) technology
Runs for up to 9,125 cycles over 25 years*
*Under specific operation parameters
EVLO SYNERGY BESS specifications
System performance
- 5 MWh capacity / 2-4 hr duration
- Liquid cooling
- Configurable grid frequency (50Hz and 60Hz)
- Front-of-meter or behind-the-meter configurations
Enclosure & environment
- Enclosure dimensions: 6.06 x 2.44 x 2.90 m (20 x 8 x 9.5 ft)
- Operating temperature range: -30°C to +55 °C (-22°F to 131°F)
- Operating humidity 0% to 100%
Safety features
- Meets NFPA 855 standards
- Active ventilation as per NFPA 69
- Certifications : IEC 62619, IEC 62477, IEC 63056, IEC 61000, UL 1973, UL 9540, NFPA 855, UN 38.3
Energy Management System EVLOGIX
- Our proprietary North American platform
- Cloud-based and NERC CIP-ready
- Onsite and remote supervision and control
- Utility-grade SCADA security for industrial operations
- Compatible with all industrial protocols for connecting to external entities
